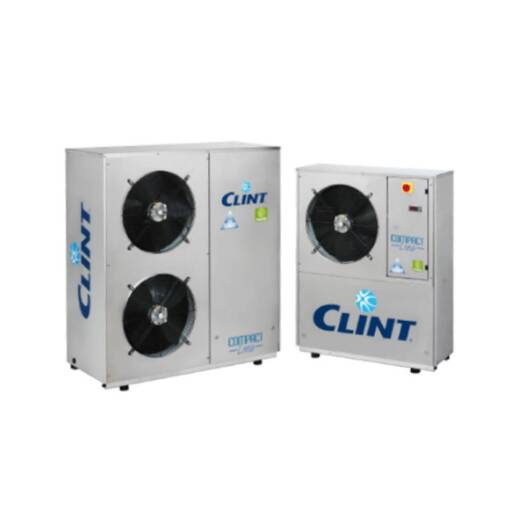

Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Serie Compact Line
Código: 3ICC0376
EAN: 8432884419241
Modelo: CHA/IK/A/WP 51
Ref. fabricante: CHA/IK/A/WP 51
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Serie Compact Line
Código: 3ICC0376
EAN: 8432884419241
Modelo: CHA/IK/A/WP 51
Ref. fabricante: CHA/IK/A/WP 51
+ Ver detalles técnicos del producto
¿QUIERES VER EL PRECIO Y MÁS INFORMACIÓN?
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Modelo: CHA/IK/A/WP 51
- Código: 3ICC0376
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Las enfriadoras de agua condensados por aire y bombas de calor reversibles de la gama Compact Line son ideales para entornos residenciales o comerciales de pequeño tamaño. Compatibilidad y facilidad de instalación son los aspectos clave de la gama, disponibles en doble clase A de eficiencia energética con compresor Scroll Inverter. La gama comprende modelos que cubren potencias frigoríficas de 6 kW a 22 kW, tanto en enfriadoras como con bombas de calor reversible.
Las principales características de esta gama son:
- Compresor scroll DC Inverter con indicador de nivel de aceite
- Ventiladores de tipo axial.
- Evaporador de tipo de placas soldadas de acero inoxidable AISI 316.
- El cuadro eléctrico incluye: interruptor general con bloqueo de puerta, fusibles, relés térmicos de protección de los compresores, termocontactos para los ventiladores, contactos libres para ON-OFF a distancia, conmutación verano/invierno, gestión agua caliente sanitaria, gestión válvula de 3 vías externa.
- Dispositivo electrónico proporcional.
- Circuito frigorífico incluye para todos los modelos los siguientes componentes: válvula de expansión termostática electrónica, filtro deshidratador, indicador de líquido y humedad, presostato de alta presión (con calibrado fijo) y trasductores de alta y baja presión. Para la versión de bomba de calor también incluye válvula de inversión de 4 vías, separador de líquido en aspiración, receptor de líquido y válvulas de retención.
- Circuito hidráulico incluye evaporador, sonda de trabajo, sonda antihielo, presostato diferencial del agua, válvula de purga de aire manual, circulador EC Inverter de alta eficiencia, vaso de expansión, desagüe de agua y válvula de seguridad.
Chiller Aire-Agua
| Potencia frigorífica |
12,4
|
|
| Potencia caloríficakW |
14,1
|
|
| EER 35ºC Aire / 12-7ºC Agua |
4,17
|
|
| COP 7ºC Aire / 40-45ºC Agua |
4,36
|
|
| SEER agua 7⁰C |
4,68
|
|
| SCOP agua 35ºC |
3,42
|
|
| Rendimiento estacional en calefacción (ηs) |
-
|
|
| Clase energética 35ºCºC |
-
|
|
| Alimentación eléctricaV / nº / Hz | 400 / 3 / 50 |
V / nº / Hz: 400
/
V / nº / Hz: 3
/
V / nº / Hz: 50
|
| Intensidad máximaA |
13
|
|
| Cable de comunicaciónnº x s |
-
|
|
| CompresorTipo |
Inverter Scroll
|
|
| RefrigeranteTipo |
R410A
|
|
| Carga refrigeranteKg |
3,6
|
|
| Caudal de aguam³/h |
35.4
|
|
| Presión disponible bombakPa |
-
|
|
| Conexiones de entrada Pul. |
1:42
|
|
| Conexiones de salidaPul. |
1:42
|
|
| Capacidad del vaso de expansiónl |
2
|
|
| Tarado de la válvula de seguridadbar |
-
|
|
| Tarado del interruptor de flujom³/h |
-
|
|
| Presión sonoradB (A) |
60
|
|
| Potencia sonoradB (A) |
-
|
|
| Temperatura salida de agua fríoºC |
18
|
|
| Temperatura salida de agua calorºC |
35
|
|
| Dimensiones Alto / Ancho / Fondomm | 1270 / 500 / 1160 |
mm: 1270
/
mm: 500
/
mm: 1160
|
| Peso netoKg |
195
|
Cotas de producto
Descubre las medidas del producto
Idiomas
Todos los idiomas
Todos los idiomas
Inglés
Multilenguaje
PRODUCT FICHE
12_290417_PF
05/08/2019
| pdf |
(Inglés)
Descargar [139.81 KB]
12_290178_PF
10/05/2019
| pdf |
(Inglés)
Descargar [139.81 KB]
12_280796_TF
24/11/2018
| pdf |
(Multilenguaje)
Descargar [383.73 KB]
12_280796_PF
24/11/2018
| pdf |
(Inglés)
Descargar [139.81 KB]
12_290417_TF
05/08/2019
| pdf |
(Multilenguaje)
Descargar [383.73 KB]
12_280489_TF
05/08/2018
| pdf |
(Multilenguaje)
Descargar [383.73 KB]
12_290178_TF
10/05/2019
| pdf |
(Multilenguaje)
Descargar [383.73 KB]
*Para acceder a la documentación técnica, es preciso que ingreses en ÁREA CLIENTE
Lista de recambios (22)
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Centralita SBA646/C programada para CHA_","id":"9ACT90242","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Centralita SBA646/C programada para CHA_","id":"9ACT90242","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Módulo conexión ELIWELL BA10000R3700","id":"9ACT1381","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Módulo conexión ELIWELL BA10000R3700","id":"9ACT1381","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Módulo conexión ELIWELL BA10000R3700","id":"9ACT1381","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Módulo conexión ELIWELL BA10000R3700","id":"9ACT1381","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Inversor CDS 803 P6K0 T4 E20 H4","id":"9ACT1430","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Inversor CDS 803 P6K0 T4 E20 H4","id":"9ACT1430","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"RELÉ CONTROL FASES DPA51CM44 5A 208-480V","id":"9ACT0587","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"RELÉ CONTROL FASES DPA51CM44 5A 208-480V","id":"9ACT0587","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Bomba Wilo Yonos PICO 30/10-180","id":"9ACT1459","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Bomba Wilo Yonos PICO 30/10-180","id":"9ACT1459","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"RESISTENCIA ELÉCTRICA 35W 220V 390X70","id":"9ACT1206","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"RESISTENCIA ELÉCTRICA 35W 220V 390X70","id":"9ACT1206","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Resistencia carter 65W 120Z5040","id":"9ACT1429","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Resistencia carter 65W 120Z5040","id":"9ACT1429","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Sonda temperatura de descarga","id":"9ACT1389","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Sonda temperatura de descarga","id":"9ACT1389","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"FUSIBLE CH10 1A GG 500V","id":"9ACT1219","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"FUSIBLE CH10 1A GG 500V","id":"9ACT1219","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Filtro corriente FLC630501","id":"9ACT0442","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Filtro corriente FLC630501","id":"9ACT0442","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"FUSIBLE CF10 GG 2A 500V 10.3X38 MM","id":"9ACT1128","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"FUSIBLE CF10 GG 2A 500V 10.3X38 MM","id":"9ACT1128","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Relé 2 SPDT 230V 50/60Hz","id":"9ACT0257","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Relé 2 SPDT 230V 50/60Hz","id":"9ACT0257","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Compresor DANFOSS VZH028","id":"9ACT1458","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Compresor DANFOSS VZH028","id":"9ACT1458","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Sonda temperatura de aspiración","id":"9ACT1388","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Sonda temperatura de aspiración","id":"9ACT1388","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Sonda temperatura de entrada o salida de","id":"9ACT1387","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Sonda temperatura de entrada o salida de","id":"9ACT1387","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"Transformador 500VA 400/230/24/12-50/60-","id":"9ACT1393","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"Transformador 500VA 400/230/24/12-50/60-","id":"9ACT1393","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"KIT CONECTOR INVENSYS COLV000042100","id":"9ACT1089","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"KIT CONECTOR INVENSYS COLV000042100","id":"9ACT1089","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"addToCart","ecommerce":{"add":{"actionField":{"list":"20_REAC"},"products":[{"name":"CABLE TRANSDUCTOR DE PRESIÓN","id":"9ACT0201","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
{"event":"removeCart","ecommerce":{"remove":{"products":[{"name":"CABLE TRANSDUCTOR DE PRESIÓN","id":"9ACT0201","price":"","brand":"","category":"Recambios Clima","quantity":"1","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX"}]}}}
| Posición | Código | Ref. fabricante | Descripción | PVP | Disponibilidad | Compra | Familia | |
|---|---|---|---|---|---|---|---|---|
| Posición A1 | Código 9ACT90242 | Ref. fabricante 355905/16 | Descripción | PVP 707,15 € |
Disponibilidad
No disponible en estos momentos
Para más información, pregúntanos y te informaremos del plazo de entrega. |
Compra
|
Centralitas electrón | |
| Posición A3 | Código 9ACT1381 | Ref. fabricante 314295 | Descripción | PVP 213,57 € |
Disponibilidad
Envío inmediato
|
Compra
|
Centralitas electrón | |
| Posición A5 | Código 9ACT1410 | Ref. fabricante 326702 | Descripción | PVP 437,69 € | Disponibilidad | Compra | Centralitas electrón | |
| Posición IC | Código 9ACT1430 | Ref. fabricante 671032 | Descripción | PVP 1.136,31 € |
Disponibilidad
Envío inmediato
|
Compra
|
Centralitas electrón | |
| Posición KF | Código 9ACT0587 | Ref. fabricante 313577 | Descripción | PVP 232,56 € |
Disponibilidad
Envío inmediato
|
Compra
|
Relés | |
| Posición MP | Código 9ACT1459 | Ref. fabricante 326766 | Descripción | PVP 1.218,98 € |
Disponibilidad
No disponible en estos momentos
Para más información, pregúntanos y te informaremos del plazo de entrega. |
Compra
|
Bombas | |
| Posición R1 | Código 9ACT1206 | Ref. fabricante 311473 | Descripción | PVP 48,14 € |
Disponibilidad
Envío inmediato
|
Compra
|
Resistencias | |
| Posición RC | Código 9ACT1429 | Ref. fabricante 355859 | Descripción | PVP 154,31 € |
Disponibilidad
Envío inmediato
|
Compra
|
Resistencias | |
| Posición SM | Código 9ACT1389 | Ref. fabricante 326721 | Descripción | PVP 48,60 € |
Disponibilidad
Envío inmediato
|
Compra
|
Sondas y sensores | |
| Posición FKF | Código 9ACT1219 | Ref. fabricante 315851 | Descripción | PVP 33,20 € |
Disponibilidad
No disponible en estos momentos
Para más información, pregúntanos y te informaremos del plazo de entrega. |
Compra
|
Fusibles |
{"event":"impressionView","ecommerce":{"impressions":[{"name":"Centralita SBA646/C programada para CHA_","id":"9ACT90242","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":1},{"name":"Módulo conexión ELIWELL BA10000R3700","id":"9ACT1381","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":2},{"name":"Driver ELIWELL XVD420HLAN000","id":"9ACT1410","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":3},{"name":"Inversor CDS 803 P6K0 T4 E20 H4","id":"9ACT1430","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":4},{"name":"RELÉ CONTROL FASES DPA51CM44 5A 208-480V","id":"9ACT0587","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":5},{"name":"Bomba Wilo Yonos PICO 30/10-180","id":"9ACT1459","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":6},{"name":"RESISTENCIA ELÉCTRICA 35W 220V 390X70","id":"9ACT1206","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":7},{"name":"Resistencia carter 65W 120Z5040","id":"9ACT1429","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":8},{"name":"Sonda temperatura de descarga","id":"9ACT1389","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":9},{"name":"FUSIBLE CH10 1A GG 500V","id":"9ACT1219","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":10},{"name":"Filtro corriente FLC630501","id":"9ACT0442","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":11},{"name":"FUSIBLE CF10 GG 2A 500V 10.3X38 MM","id":"9ACT1128","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":12},{"name":"Relé 2 SPDT 230V 50/60Hz","id":"9ACT0257","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":13},{"name":"Compresor DANFOSS VZH028","id":"9ACT1458","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":14},{"name":"Sonda temperatura de aspiración","id":"9ACT1388","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":15},{"name":"INTERRUPTOR GENERAL","id":"9ACT0230","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":16},{"name":"TRANSDUCTOR 0-45BAR/4-20MA","id":"9ACT1249","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":17},{"name":"TRANSDUCTOR PRESIÓN CAREL CHAE/SP 1604","id":"9ACT0120","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":18},{"name":"Sonda temperatura de entrada o salida de","id":"9ACT1387","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":19},{"name":"Transformador 500VA 400/230/24/12-50/60-","id":"9ACT1393","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":20},{"name":"KIT CONECTOR INVENSYS COLV000042100","id":"9ACT1089","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":21},{"name":"CABLE TRANSDUCTOR DE PRESIÓN","id":"9ACT0201","brand":"","category":"Recambios Clima","dimension16":"","dimension17":"SP","dimension18":"","dimension19":"REACXXXX","list":"","position":22}]}}
{"event":"impressionClick","ecommerce":{"click":{"actionField":{"list":""},"products":[""]}}}
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Compact Line
Código: 3ICC0376
Modelo: CHA/IK/A/WP 51
EAN: 8432884419241
Ref. fabricante: CHA/IK/A/WP 51
Las enfriadoras de agua condensados por aire y bombas de calor reversibles de la gama Compact Line son ideales para entornos residenciales o comerciales de pequeño tamaño. Compatibilidad y facilidad de instalación son los aspectos clave de la gama, disponibles en doble clase A de eficiencia energética con compresor Scroll Inverter. La gama comprende modelos que cubren potencias frigoríficas de 6 kW a 22 kW, tanto en enfriadoras como con bombas de calor reversible.
Las principales características de esta gama son:
- Compresor scroll DC Inverter con indicador de nivel de aceite
- Ventiladores de tipo axial.
- Evaporador de tipo de placas soldadas de acero inoxidable AISI 316.
- El cuadro eléctrico incluye: interruptor general con bloqueo de puerta, fusibles, relés térmicos de protección de los compresores, termocontactos para los ventiladores, contactos libres para ON-OFF a distancia, conmutación verano/invierno, gestión agua caliente sanitaria, gestión válvula de 3 vías externa.
- Dispositivo electrónico proporcional.
- Circuito frigorífico incluye para todos los modelos los siguientes componentes: válvula de expansión termostática electrónica, filtro deshidratador, indicador de líquido y humedad, presostato de alta presión (con calibrado fijo) y trasductores de alta y baja presión. Para la versión de bomba de calor también incluye válvula de inversión de 4 vías, separador de líquido en aspiración, receptor de líquido y válvulas de retención.
- Circuito hidráulico incluye evaporador, sonda de trabajo, sonda antihielo, presostato diferencial del agua, válvula de purga de aire manual, circulador EC Inverter de alta eficiencia, vaso de expansión, desagüe de agua y válvula de seguridad.
Bomba de calor reversible Clint Compact Line CHA/IK/A/WP 51
Chiller Aire-Agua
Potencia frigorífica
12,4
Potencia calorífica
kW
14,1
EER 35ºC Aire / 12-7ºC Agua
4,17
COP 7ºC Aire / 40-45ºC Agua
4,36
SEER agua 7⁰C
4,68
SCOP agua 35ºC
3,42
Rendimiento estacional en calefacción (ηs)
-
Clase energética 35ºC
ºC
-
Alimentación eléctrica
V / nº / Hz
400 / 3 / 50
Intensidad máxima
A
13
Cable de comunicación
nº x s
-
Compresor
Tipo
Inverter Scroll
Refrigerante
Tipo
R410A
Carga refrigerante
Kg
3,6
Caudal de agua
m³/h
35.4
Presión disponible bomba
kPa
-
Conexiones de entrada
Pul.
1:42
Conexiones de salida
Pul.
1:42
Capacidad del vaso de expansión
l
2
Tarado de la válvula de seguridad
bar
-
Tarado del interruptor de flujo
m³/h
-
Presión sonora
dB (A)
60
Potencia sonora
dB (A)
-
Temperatura salida de agua frío
ºC
18
Temperatura salida de agua calor
ºC
35
Dimensiones Alto / Ancho / Fondo
mm
1270 / 500 / 1160
Peso neto
Kg
195
